ROTARY TABLET PRESS

KOMPRESSOR Developer

CONCEPTION

The Kompressor Developer offers an innovative technology within reduced areas since it is built according to GMP guidelines.
It is a mobile equipment connected to an analytical power station; it is small due to its strong structure dimensions and it is also designed to develop high value added pharmaceutical tablets in an easy, fast and efficient manner.
The technical characteristics are similar to the equipments to those of the production equipment safe scale up insurance.

It is prepared to work with tooling according to EU or TSM guidelines at request of the client.
A transmission system powered by a central servomotor which is connected directly to the turret-head was designed to guarantee the accuracy of the angular positioning and the constant torque from 3 to 60 rpm.

It has stainless steel lower enclosures and polycarbonate upper doors which allow full visual access to the compression chamber.
These doors have a security system and are interconnected pursuant to CE guidelines.

Features

  • Industrial PC with ups, Windows operative system
  • Teleservice modem
  • Wireless operation for equipment’s remote control
  • Fast and easy development monitoring
  • Online guide for panel operation
  • Punch to punch graphical representation during compression process
  • Pre-compression, compression and ejection graphics
  • Multi-lenguage software
  • Principal transmission powered by a servomotor
  • Possibility to compress at the maximum strength using minimum speed
  • Automatic positioning punch to punch
  • Possibility of turning the turret-head manually through the wheel
  • Accuracy in the graph of the curves throught encoder in the angle
  • Software and hardware in compliance to CFR 21 part 11. The modern system of industrial PC with a 12" touch screen guarantees a bright and clear visualization of all the evaluation and statistics graphics. Allows viewing the forces of each turret-head during compression, pre-compression and ejection; obtaining the measures of each of them and ploting them. Also allows to create reports according to filters and users levels. Alarm lists, turret-head
    • Easy cleaning
    • Easy dissassemble
    • Seal segments which match with the tablet diameter and reducing the loss of the product

    GRAVITY FEEDER CHARGER

    Feed from the charger hopper spilling the production over the dies by gravity

    FEEDER charge

    Uniform product distribution in the load line guaranteeing the charge during speed
    • Transsmission by tooth belt
    • Intercheangeble stars of various formats
    • Stars’ speed is programmable from the touch panel
  • Allows working with format B/D/BB
  • System of elevation and rotation of the compress for the extraction of the same one. It allows the assembly and disassembly of punches and dies outside the cab facilitating the process and reducing the time of preparation of the equipment
  • Avoid the dust accumulation inside the compression chamber
  • Easy cleaning
  • Pollution reduction inside the chamber


  • TECHNICAL CHARACTERISTICS

    Units D B BB
    NUMBER OF STATIONS 10 12 14
    MAX PRE-COMPRESSION FORCE Kn. 40 40 40
    MAX. COMPRESSION FORCE Kn. 60 60 60
    MAX. TABLET DIAMETER mm. 25 16 13
    MAX. PRODUCTION mm. 19 19 19
    MAX. PRODUCTION Tablets/Hour 36.000 43.200 50.400
    APPROXIMATE WEIGHT kg. 400 400 400
    Type of tooling: EU o TSM

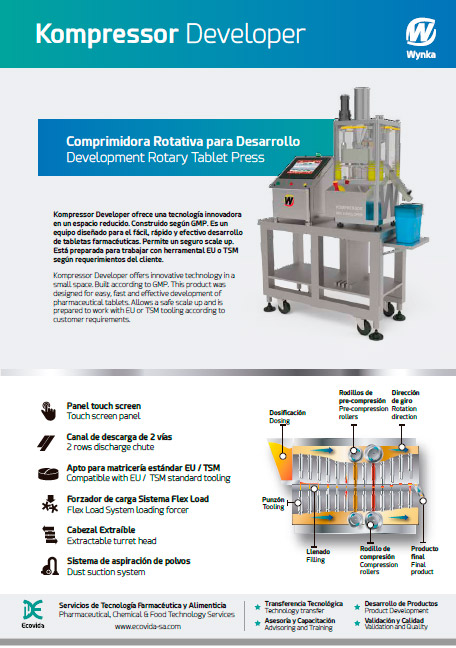

    Data Sheet Download
